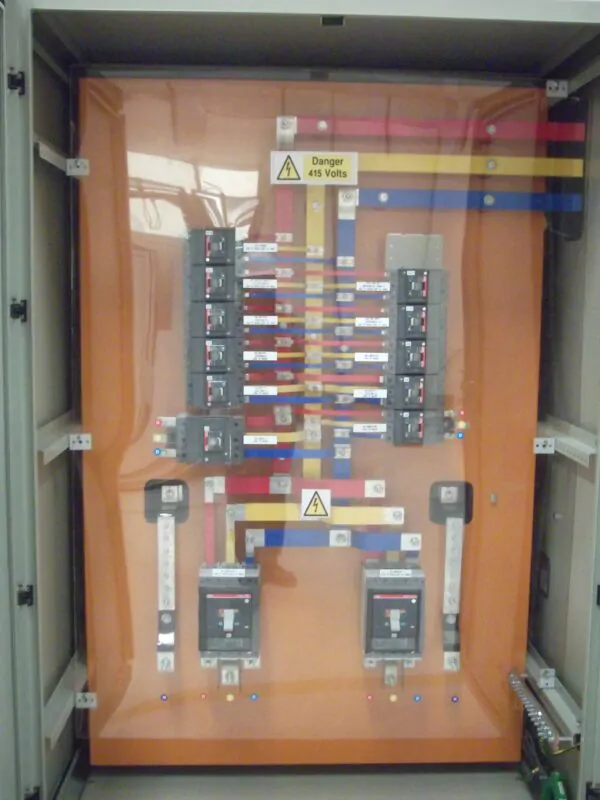

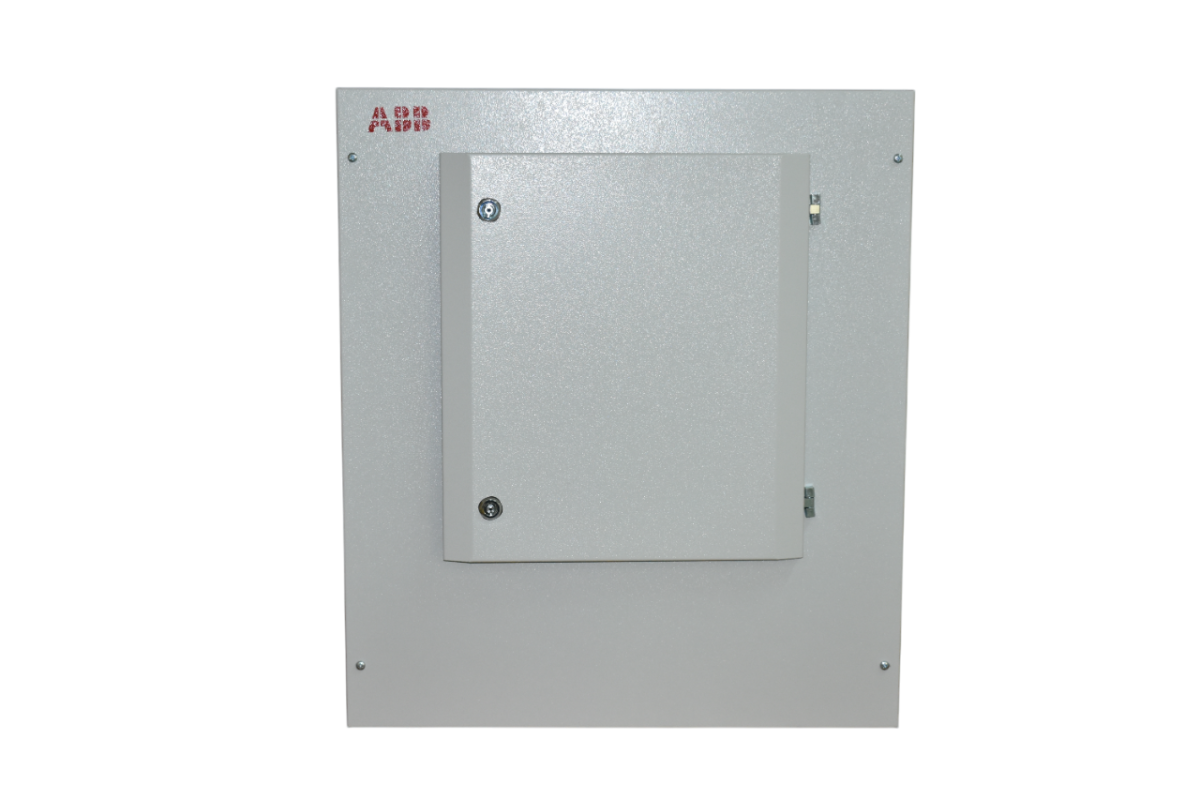

Q-Tec Switchgear offers a wide range of sub-main distribution boards (SMDB) for use in electrical power distribution and control. The range includes simple SMDBs, which are compact in size and highly functional. Our SMDB range starts from 100A and extends up to 630A in form 2 design onwards and up to IP 54 protection. Further, all other intermediate as well as smaller products are also manufactured and designed with similar specifications.

Designed to meet local technical standards, practices and requirements, SMDBs from Q-Tec are

international laboratory certified and compliant with IEC standards 61439-1/ 61439-2/ 61439-3.

TECHNICAL SPECIFICATIONS

• Rated insulation voltage up to 1000V
• Incomer load break switch or MCCB rated up
• to 630A, 25kA/35kA for 3 sec
• Up to 16 ways
• Above 16 way customized solution available
• Forms of internal separation up to form 4
• Protection class up to IP 54
• Ambient temperature up to 50°C
• RAL 7035/ RAL 7032 color as standard, other colors on request
• Cable entry possible from top, bottom and side entry
• Extendable on both sides
• Aluminium gland plates (Optional)
• RAL 7035/RAL 7032 colour as standard, other colours on request
• Customizable to special dimensions according to customer requirement and specification.
