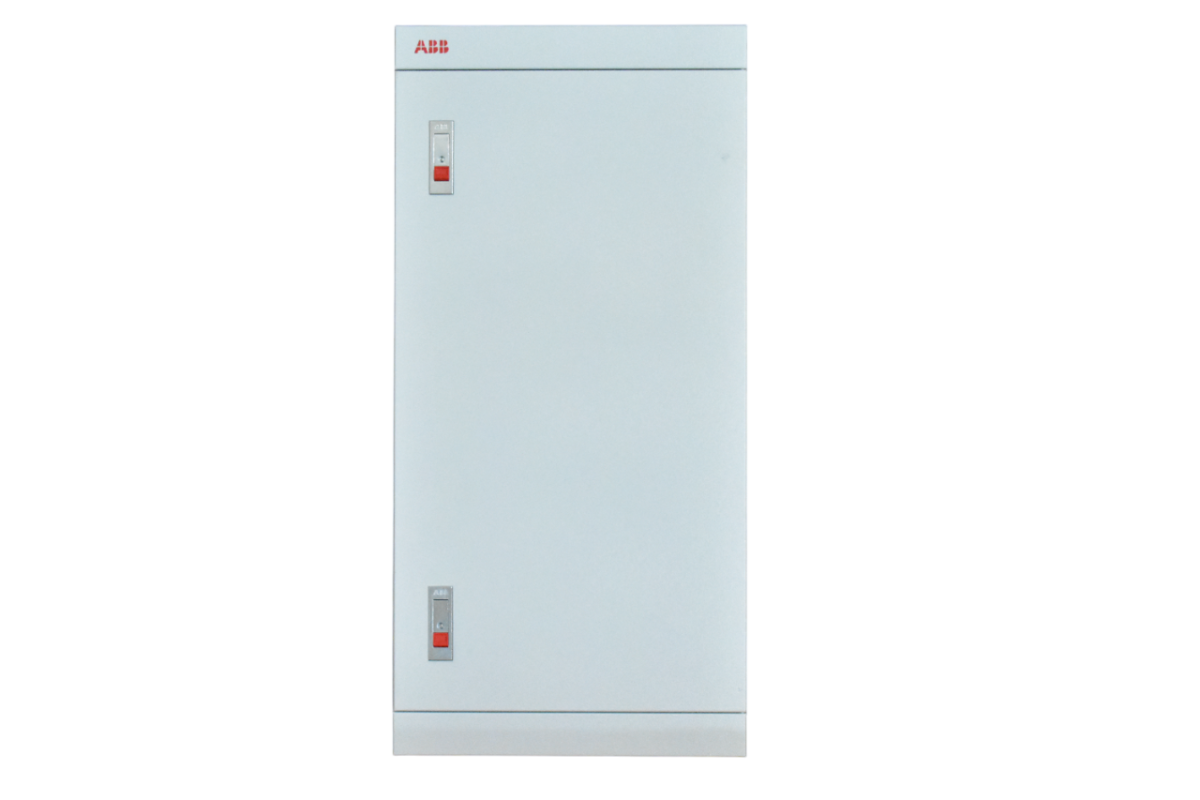

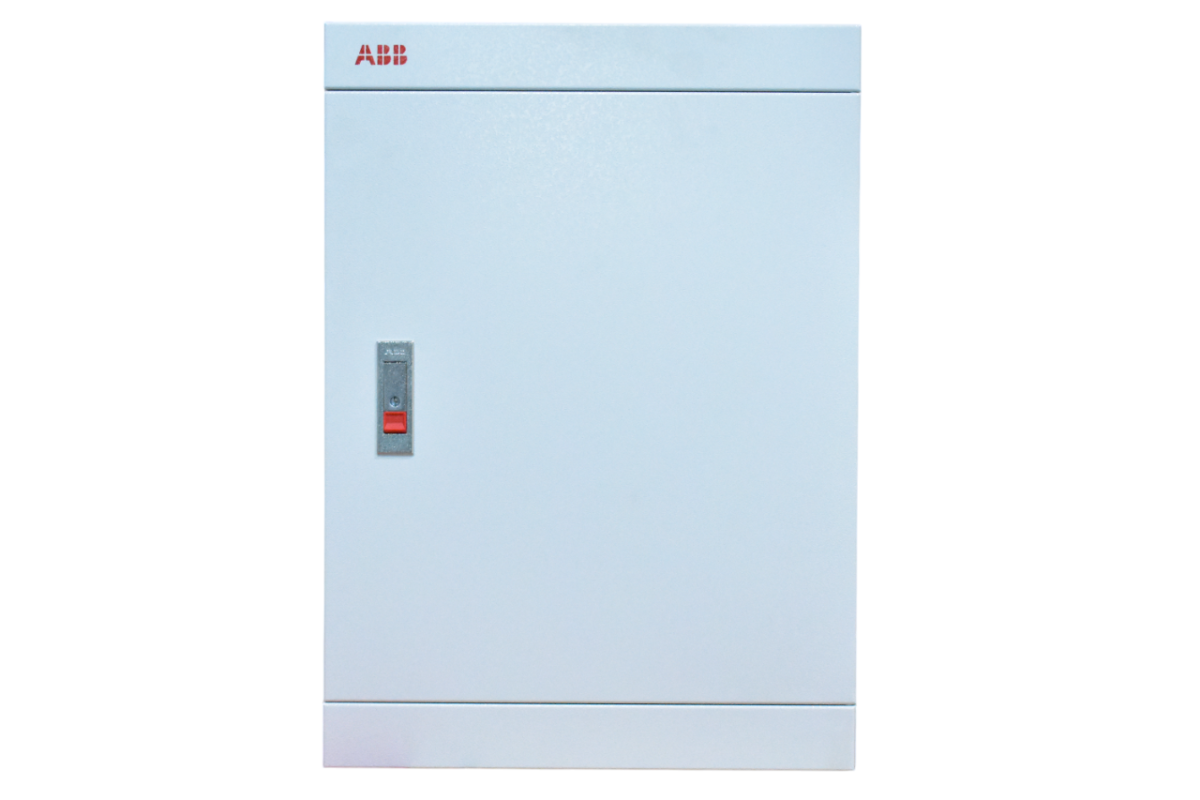

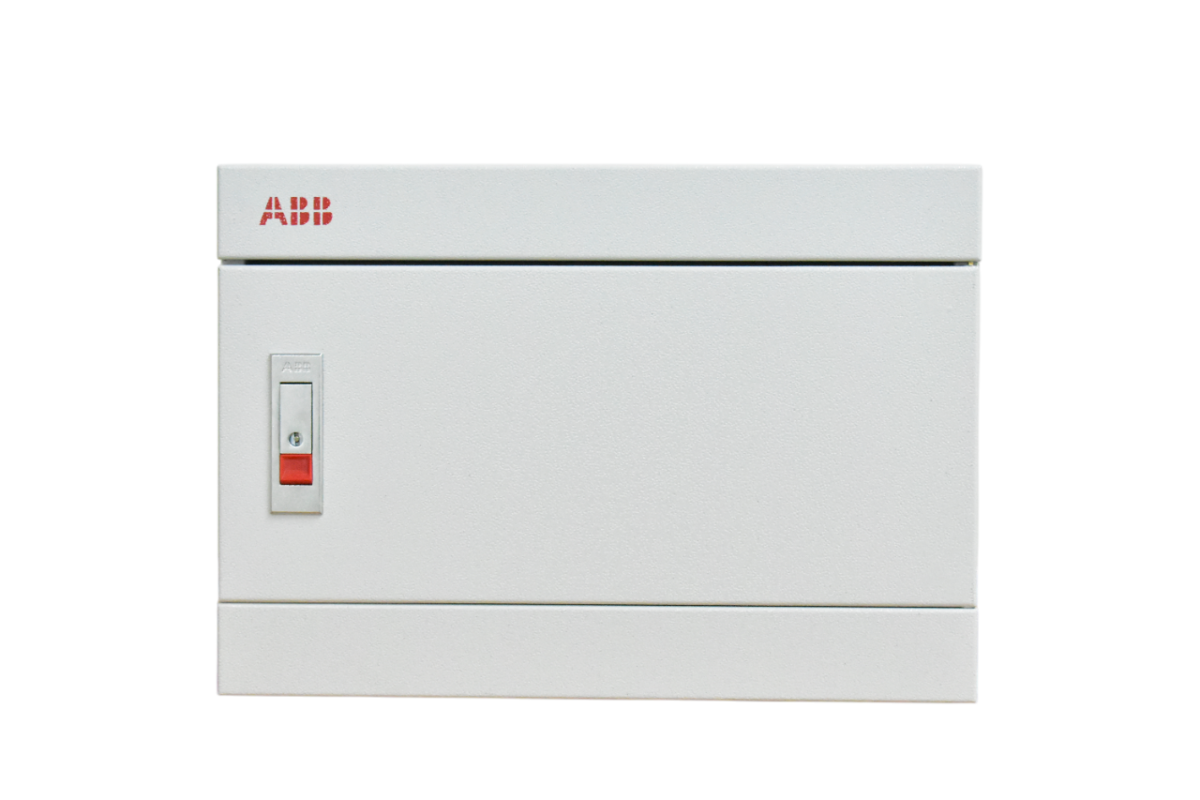

Q-Tec offers compact Final Distribution Boards (FDB), designed for safety, reliability and availability in electrical installations. DBs are available in busbar and multi row types, and surface or flush mounting on request. These DBs are compliant with IEC standards 61439-1/61439-2/61439-3/60898

SALIENT FEATURES:

• Compact DBs which occupy minimum space.
• Raised neutral link for easy wiring.
• Detachable din bar with end stoppers for easy assembly of breakers.
• Supplied with fully shielded bus-bars.
• Level marks for providing indication for fitment in wall.
• Supplied with neutral & earth link, top & bottom detachable plates.

AVAILABLE EXTENSIONS AND AUGMENTATIONS:

• In accordance with IEC 61439-1.
• Modular design concept enables flexible selection of incomers, extension boxes, etc.
• 250A continuously rated copper busbar.
• 5kA short circuit capacity.
• Fully shrouded phase busbars for increased safety.
• One piece (no welds or rivets) phase busbars to eliminate the risk of hot spots.
• Accepts 6kA, 10kA and 15kA MCBs and flying lead RCBOs.
• Ample space behind the pan assembly aids wiring installation.
• 25mm² terminal cable capacity on earth & neutral bars.
• Shrouded neutral terminal bars for increased safety.
