Q-Tec offers a range of low voltage lighting control panels and pump control panels.

LIGHTING CONTROL PANELS

These panels combine remote operated circuit breakers and a microprocessor-based controller. They reduce energy costs by programming lights to turn off during unoccupied periods. Users can also save space and installation costs by removing the need for external control cabinets, wiring relays, contractors, and time clocks.

SALIENT FEATURES

• Open Protocol System communicates via Modbus, RTU/TCP without the requirement of gateways
• 16 Schedules available including a 7-day repeating schedule with 16 daily On/Off periods
• 16 Lighting Zones group branch breakers that are controlled by schedules, manual inputs, or override
• commands
• Electronic Clock capabilities include a real-time clock, astronomical clock, and leap year and daylight
• savings time adjustments
• Burn-hour tracking totals run time on breaker loads
• Load Priority Management enables the user to set load shed levels on each breaker
• Event and Trend Logs provide a record of alarms and status changes
• Remote Operated Circuit Breaker Software option allows users of A-Series Lighting Control Panels to
• program panels using a PC-based application that makes it easy to create lighting zones, establish
• on/off schedules, and collect data on burn hours

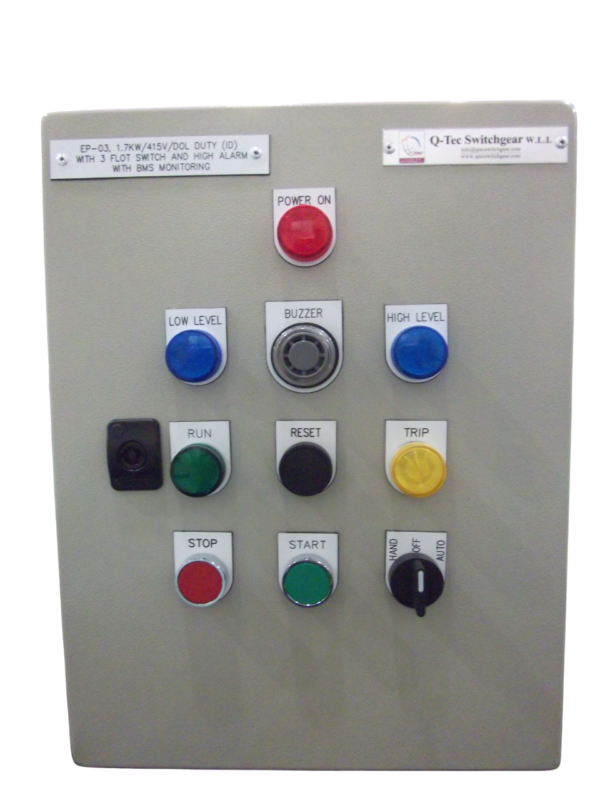

PUMP CONTROL PANELS

Pump Control Panels come with a motor circuit protector. You can customize them with a variety of starter

types for specific applications and accessories for control and diagnostic feedback. In case of Variable

Frequency Drive (VFD) integration requirement we can select and offer VFD based on application as well

as customer requirement.

SALIENT FEATURES

• In Built Starter
• Completely Automatic Operation
• Digital display of faults as well as parameters
• Highly accurate and reliable
• Internal alternating operation between pumps
• Capacity to run multiple pumps at the same time
• Available with Level control, Pressure or Timer control
