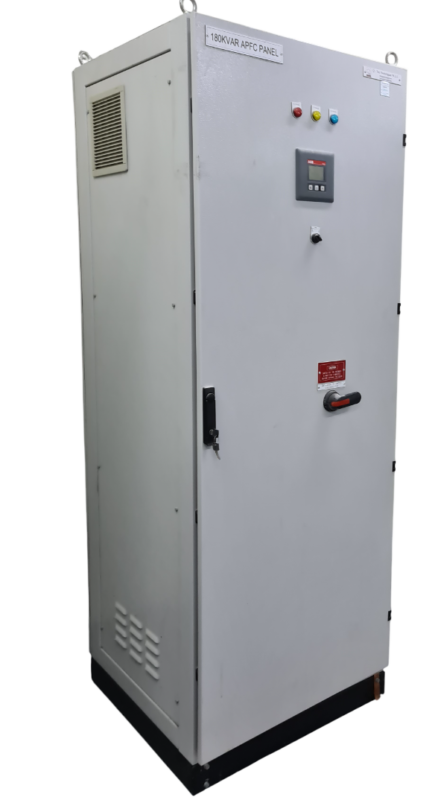

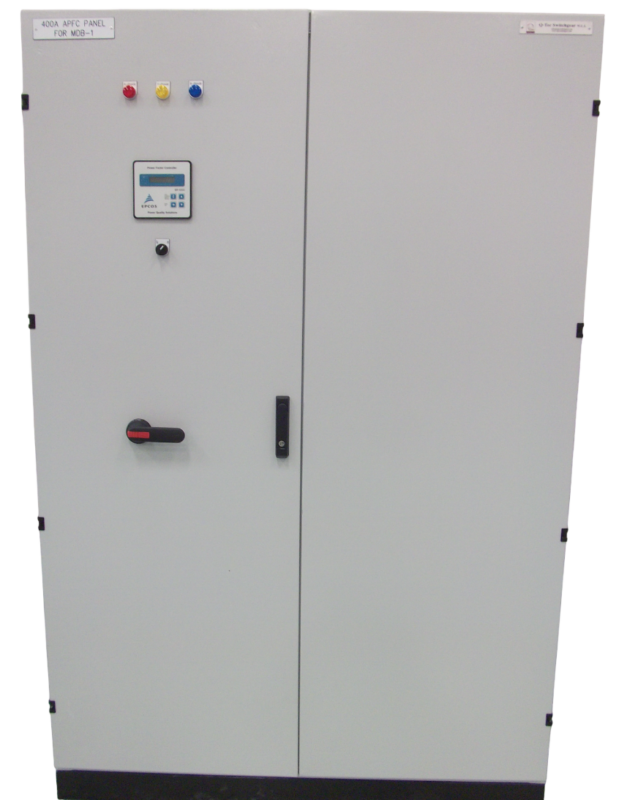

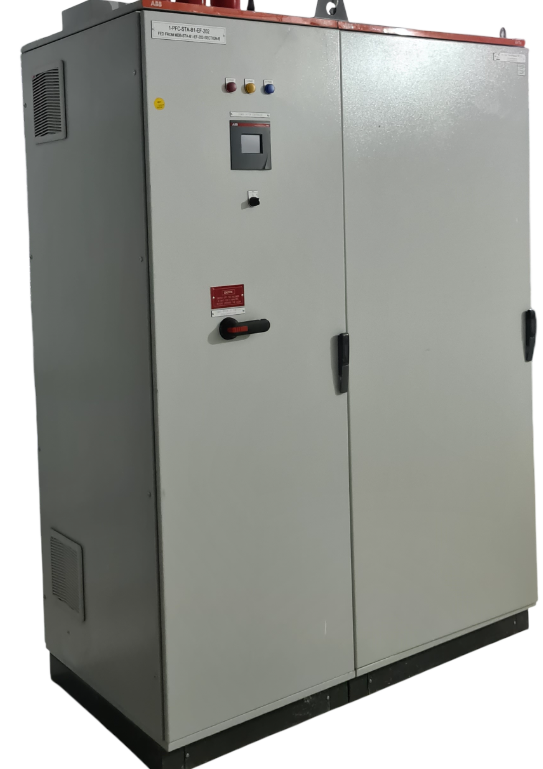

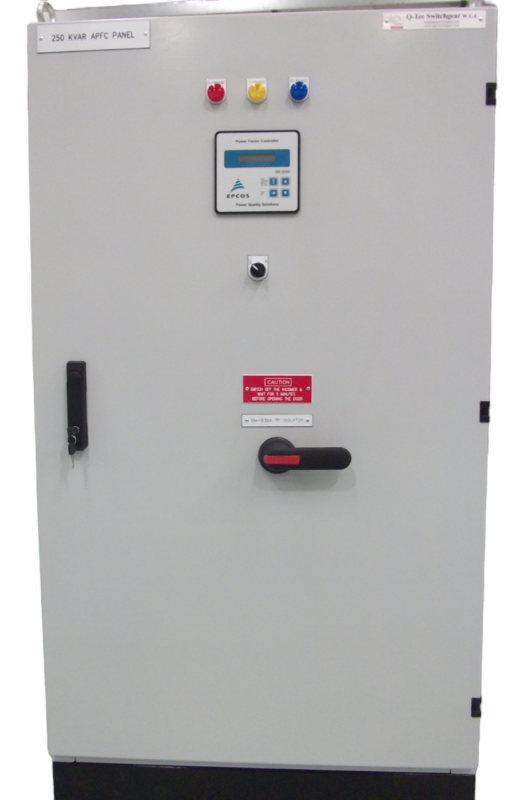

Q-Tec offers a wide range of Automatic Power Factor Control (APFC) panels designed with precision engineering to obtain the maximum power factor (PF) compensation. Designed to

meet local technical standards and requirements, these panels are compliant with IEC standards 61439-1/61439-2/61439-3/IEC 60931.

TECHNICAL SPECIFICATION:

• Rated Voltage : 415/440/500/525/600/690 Volts
• Rating : From 50KVAR – 1250 KVAR (Higher rating possible as optional)
• Incomer : MCCB/ACB/Fuse
• Switch Protection : HRC Fuse/MCCB
• Cable Entry : Top/Bottom
• Capacitors : ABB/Epcos/Reputed Brands
• Type of construction – Up to Form 3B, free standing, floor/ wall mounted, compartmental/ cubicle design.
• Degree of protection – IP 42/43, Higher possible as optional.
• Busbar short circuits withstand capacity –35 Ka for 3 seconds duration. Wiring standard – Copper flexible cables run in PVC troughs, neatly bunched and dressed, terminated with tinned copper lugs
• APFC controller – 6/8/12/14 stage, Programmable, Electronic based controller.
• Compliant to IEC standards 61439-1/61439-2/61439-3/ IEC 60931
• Designed to meet local technical standards, practices and requirements
