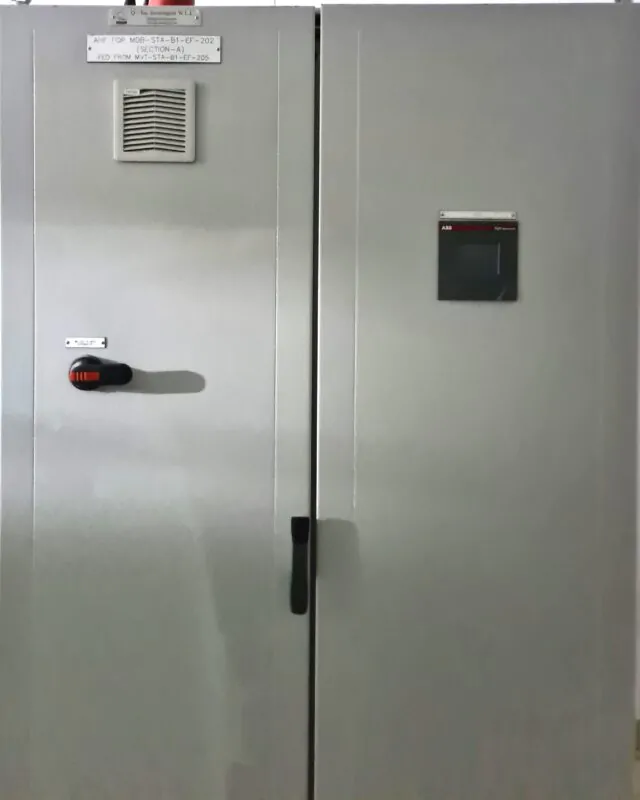

Q-Tec offers a wide range of active harmonic filter panels that are designed with precise engineering calculations to obtain maximum power quality. These AHF panels are compliant with quality regulations like IEEE 519 and IEC/EN 62040 – 2 category C3. They are also designed to meet local technical standards and requirements.

SALIENT FEATURES

• Designed with concept of modularity which allows upgrading of Ampere rating when required
• Ability to maintain power quality and control harmonics
• Suitable for both balanced and unbalanced load
• Leading brands of MCCBs, MCBs, AHF for reliable and trouble-free operations
• Well-designed powder-coated panel box with cooling fans for dissipation of heat
• Improves power quality by minimizing harmonic current & voltage
• Equipped with suitable protection relays as required

TECHNICAL SPECIFICATION:

• Rated Voltage: 415/440/500/525/600/690 Volts
• Rating: 50A-1000A (Higher rating possible as optional)
• Incomer: MCCB/ACB/Fuse
• Switch Protection: HRC Fuse/MCCB
• Cable Entry: Top/Bottom
• AHF: ABB/Epcos/Reputed Brand
• Type of construction – Up to Form 3B, free standing, floor/ wall mounted, compartmental/ cubicle design.
• Degree of protection – IP 42/43, Higher possible as optional.
• Busbar short circuits withstand capacity –35 kA for 3 seconds duration. Wiring standard – Copper flexible cables run in PVC troughs, neatly bunched and dressed, terminated with tinned copper lugs.
• Designed with concept of modularity which allows upgrading of Amper rating when required
• Ability to maintain power quality and control the Harmonics
• Suitable for both balanced and unbalanced load
• Leading brands of MCCB’s, MCB’s, AHF for reliable and trouble-free operations.
• Well-designed powder coated panel box with cooling fans for dissipation of heat.
• Improves Power quality by minimizing Harmonic current & voltage
• Equipped with suitable protection relays as required

AVAILABLE EXTENSIONS AND AUGMENTATIONS:

• Type of construction – Up to Form 3B, free standing, floor/ wall mounted, compartmental/ cubicle design.
• Degree of protection – IP 42/43, Higher possible as optional.
• Busbar short circuits withstand capacity –35 kA for 3 seconds duration. Wiring standard – Copper flexible cables run in PVC troughs, neatly bunched and dressed, terminated with tinned copper lugs.
